Product Overview

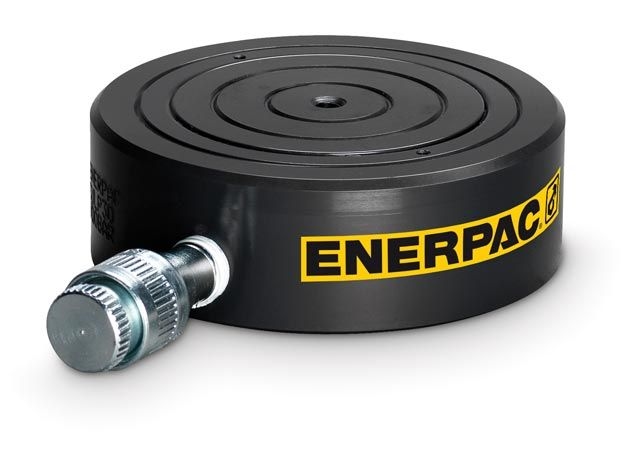

CULP-Series Low Height Hydraulic Cylinders, also known as hydraulic pancake cylinders, offer an impressive power to height ratio, making them the right choice for confined spaces where other cylinders will not fit.
There are several configurations to choose from, with tonnage capacities ranging from 10 to 100 imperial tons (97-1077 kN), and collapsed heights from 1.08 - 2.55" (27.5 - 65mm).
All are finished with a tough Nitrocarburized coating for enhanced corrosion protection in harsh working environments.
Features
- Up to 4% side load of maximum capacity
- Stop-ring for maximum stroke limitation
- Extremely low collapsed height
- Nitrocarburized surface treatment for harsh conditions
- Coupler included
Technical Specifications
Maximum Operating Pressure10,150 psi (700 bar)
Capacity Class10 tonnage
Maximum Cylinder Capacity Advance10.9 short tons (97 kN)
Stroke0.24 in (6 mm)
Collapsed Height A1.08 in (27.5 mm)
Extended Height B1.32 in (33,5 mm)
Return TypeSingle-Acting, Load Return
Plunger TypeSolid
MaterialSteel
Cylinder Effective Area Advance2.15 in2 (13,9 cm2)
Oil Capacity Advance0.51 in3 (8,3 cm3)
Surface TreatmentNitride
CouplerAR630 Coupler
Weight2 lbs (1,0 kg)
