Product Overview

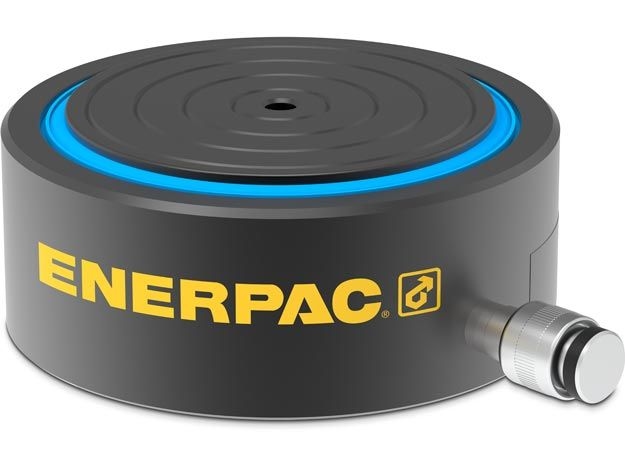

CUSP-Series Low Height Hydraulic Cylinders, also known as hydraulic pancake cylinders, combine an impressive power to height ratio with a tilting saddle function to distribute the load evenly and prevent side load.
These are available in several high-tonnage capacities, making them the right choice for confined spaces where other cylinders will not fit.
There are several configurations to choose from, including high tonnage capacities up to 1000 tons (10165 kN). These ultra-flat hydraulic cylinders have collapsed heights from 1.4 up to 4.06” (35.5 to 103 mm).
All are finished with a tough Nitrocarburized coating for enhanced corrosion protection in harsh working environments.
Features
- Up to 4% side load of maximum capacity
- Extremely low collapsed height
- Integrated tilting function up to 4 degrees to evenly distribute the load
- Nitrocarburized surface treatment for harsh conditions
- "Red Line" for visual maximum stroke limitation Up to 4% side load of maximum capacity
- Coupler included
Technical Specifications
Maximum Operating Pressure10,150 psi (700 bar)
Capacity Class75 tonnage
Maximum Cylinder Capacity Advance89.0 short tons (792 kN)
Stroke0.55 in (14 mm)
Collapsed Height A2.38 in (60.5 mm)
Extended Height B2.93 in (70,5 mm)
Return TypeSingle-Acting, Load Return
Plunger TypeSolid
MaterialSteel
Cylinder Effective Area Advance17.53 in2 (113,1 cm2)
Oil Capacity Advance9.66 in3 (158 cm3)
Tilted Stroke0.39 in (10 mm)
Tilting Degrees4
Surface TreatmentNitride
CouplerAR630 Coupler
Weight17.6 lbs (8,0 kg)
