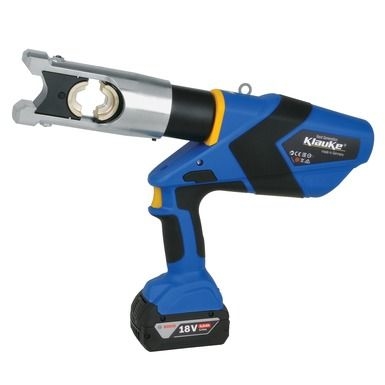

Product image 1

Battery powered hydraulic crimping tool 16 - 400 mm²

Product Overview

Features
Choose your battery system: Bosch or Makita
All data can be easily read via Bluetooth
Closed head, rotatable
Quality assurance via visual and audible signals in case of error
Simple and safe: one-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: automatic retraction when operation is complete
Automatic retract stop (ARS) for positioning control in case of multiple crimps
Always ready-to-use thanks to battery charge and service display


suitable for

13-series interchangeable crimping dies, wide crimping



Technical Specifications

Crimping force  120 kN
Stroke/opening width 20 mm
Crimping range16 - 400 mm²
Crimping cycle 7 s to 8 s (depending on crimping cross-section)
Number of crimpsapprox. 115 at 150 mm² Cu DIN
Battery voltage18 V
Battery capacity 4.0 Ah, Li-Ion
Battery charging time  36 mins
Weight including battery  6.2 kg
Ambient temperature  -10 °C to +40 °C
