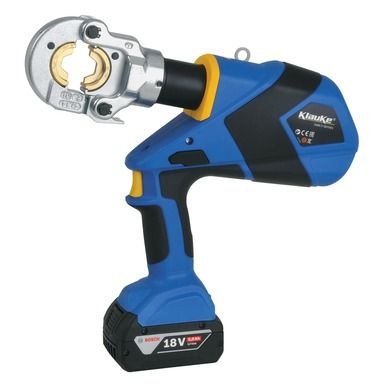

EK 60/22
Product Overview
Features
Choose your battery system: Bosch or Makita
All data can be easily read via Bluetooth
Closed head, flip top style, rotatable
Quality assurance via visual and audible signals in case of error
Effortless working due to balanced centre of gravity
LED for work area illumination
Simple and safe: automatic retraction when operation is complete
Automatic retract stop (ARS) for positioning control in case of multiple crimps
Always ready-to-use thanks to battery charge and service display
suitable for:
22-series interchangeable crimping dies, narrow crimping
Technical Specifications
Crimping force60 kN
Stroke17 mm
Crimping range 6 - 300 mm²
Crimping cycle3 s to 5 s (depending on crimping cross-section)
Number of crimpsapprox. 300 at 150 mm² Cu DIN
Battery voltage18 V
Battery capacity 4.0 Ah, Li-Ion
Battery charging time36 mins
Weight including battery4,2 kg
Ambient temperature-10 °C to + 40 °C
