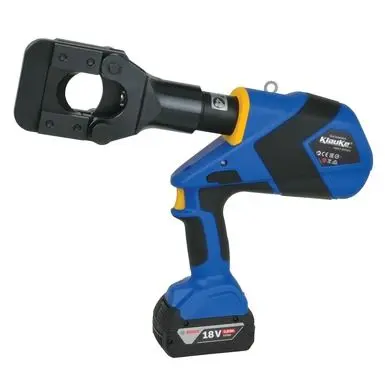

Battery powered hydraulic cutting tool 45 mm dia

Product Overview

Features
Choose your battery system: Bosch or Makita
All data can be easily read via Bluetooth
Closed head with bolt interlock, rotatable, flip top style
Simple and safe: one-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: automatic retraction when operation is complete
Manual retract stop (MRS) for efficient operations
Always ready-to-use thanks to battery charge and service display


suitable for:

Armoured Cu and Al cables, Al/St wires



Technical Specifications

Head typeGuillotine closed
Cutting range max. 45 mm dia.
Cutting force70 kN
Cutting time8 s to 18 s (depending on material thickness)
Number of cutsapprox. 150 at Al/St cable 570/40
Battery voltage 18 V
Battery capacity3.0 Ah, Li-Ion
Battery charging time36 mins
Weight including battery5,9 kg
Ambient temperature -12 °C to +40 °C
