Product Overview

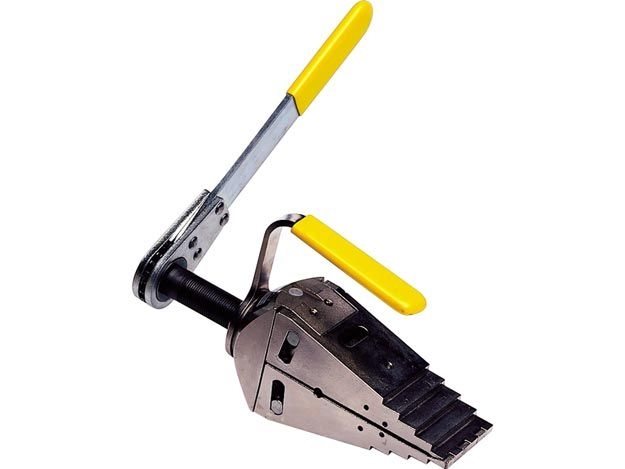

The FSM8 Manual Flange Spreader is mechanically operated using a ratchet mechanism. With no need a hydraulic pump and trailing hoses, it is a great choice for working in difficult spaces at remote locations.
The FSM8 flange tool fits into very small clearance gaps of 0.24 inch (6 mm). It uses a friction-free, smooth, parallel wedge movement to prevent flange damage and spreading arm failure.
Features
- Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
- Unique interlocking wedge design: no first step bending and risk of slipping out of joint
- Requires very small access gap of only 0.24 inch (6 mm)
- Stepped spreader arm design: each step can spread under full load
- Few moving parts means durability and low maintenance
- Safety block SB1 and single-acting cylinder included
Technical Specifications
Maximum Spread3.16 in (80 mm)
Power SourceMechanical
Maximum Spreading Force72 lbf
Capacity8 imperial tons
Tip Clearance0.24 in (6 mm)
Weight14.3 lbs (6.5 kg)
