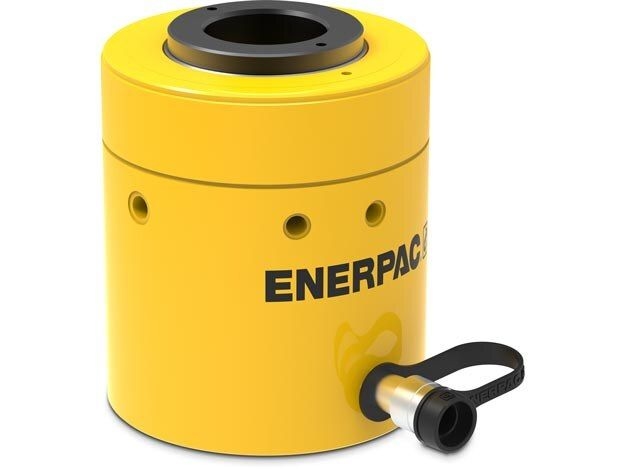

RCH1003
Product Overview
RCH-Series Hollow Plunger Cylinders offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull or lifting applications. 
Enerpac cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. The center hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has nickel-plated floating center tube to reduce side load damage and increase the product life. 
Features
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
Technical Specifications
Maximum Operating Pressure10,000 psi (700 bar)
Capacity Class100 tonnage
Maximum Cylinder Capacity Advance103.1 short tons (931 kN)
Stroke3 in (76 mm)
Collapsed Height A10 in (254 mm)
Extended Height B13 in (330 mm)
Center Hole Diameter Y3.11 in (79,0 mm)
Return TypeSingle-Acting, Spring Return
Plunger TypeHollow
MaterialSteel
Cylinder Effective Area Advance20.63 in2 (133,0 cm2)
Oil Capacity Advance61.88 in3 (1011 cm3)
Surface TreatmentPaint
CouplerCR400 Coupler
Weight132 lbs (63,0 kg)
