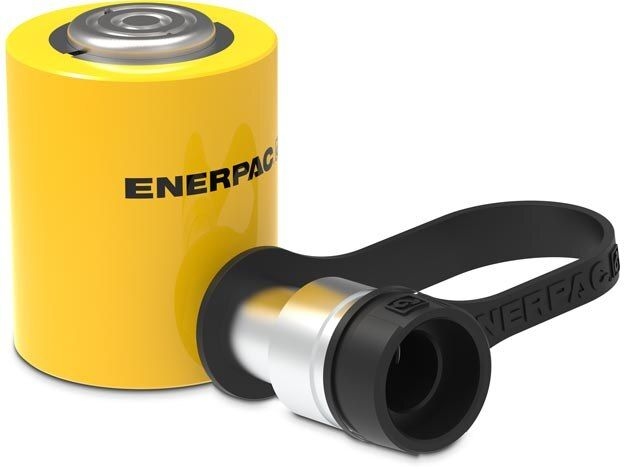

Product Overview
RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).
Features
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
Technical Specifications
Maximum Operating Pressure10,000 psi (700 bar)
Capacity Class10 tonnage
Maximum Cylinder Capacity Advance11.2 short tons (101 kN)
Stroke1.5 in (38 mm)
Collapsed Height A3.47 in (88 mm)
Extended Height B4.97 in (126 mm)
Return TypeSingle-Acting, Spring Return
Plunger TypeSolid
MaterialSteel
Cylinder Effective Area Advance2.24 in2 (14,5 cm2)
Oil Capacity Advance3.35 in3 (55 cm3)
Surface TreatmentPaint
CouplerCR400 Coupler
Weight6 lbs (2,7 kg)
