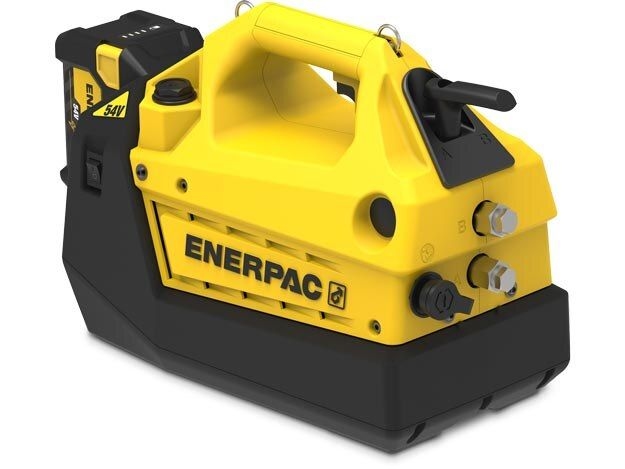

XC2402ME

Product Overview
The XC2-Series pumps take speed, battery run time and oil capacity to new levels greatly expanding the usage opportunities. Capable of larger tool and cylinder applications, cordless convenience can be extended further in the field or facility.
The high-performance brushless motor provides the speed of a 1/2 HP electric pump enabling corded productivity with cordless convenience.
Manual valve models feature a variable speed trigger for greater control of tool or cylinder advance and the Enerpac 54 Volt battery system enables significant work completion on a single battery charge.
Features
- Cordless convenience eliminates extension cords, noise and emission producing generators
- High-performance brushless motor drives high-flow rates for increased productivity and provides twice the life of brushed motors
- Bladder reservoir reduces contamination and allows pump use in any position
- Pump models with 1 gallon oil capacity enable use with larger and multiple cylinders
- Accessory shoulder strap SSTRP55 attaches to integrated steel rings for enhanced portability
- Compatible with the Enerpac Connect App, which gives access to the latest tool & job information
- Torque pump models available
Technical Specifications
Maximum Operating Pressure10,000 psi (700 bar)
Cylinder CompatabilityDouble-acting
Reservoir Capacity134 in3 (2,0 litres)
Usable Oil Capacity122 in3 (2,0 litres)
Maximum Flow at Rated Pressure20 in3/min (0,33 l/min)
Output Flow Rate No Load160 in3/min (2,60 l/min)
Output Flow Rate Load20 in3/min (0,33 l/min)
Output Flow Rate 10000 psi20 in3/min
Motor Size0.94 hp
Valve OperationManual
Valve Type4-way, 3-position
Power SourceBattery
Charger Voltage230 VAC
Weight28.3 lbs (12,8 kg)
