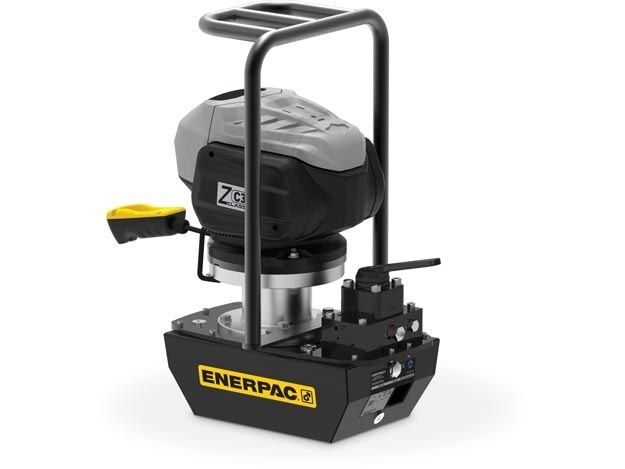

Product image 1

Cordless Hydraulic Pump, 3/3 Valve, 1.75 gallon Usable Oil, Battery and Charger Included, 230V

Choose Rental Period

Product Overview

The Enerpac ZC-Series pump combines the performance of an electric pump with the convenience and portability of a battery pump. This quiet, cordless solution is ideal for applications where emission and noise are a concern, or when electricity or air is not readily available.

Power for the pump is supplied by a rechargeable 82V lithium-ion battery. The lithium-ion battery can provide impressive run times, even under extreme job site conditions. The ZC-Series Cordless Battery Pump has an oil capacity of 1.75 gallons and a flow rate of 32 in3/min.

Features
  • High-flow cordless solution saves users time and money by eliminating the need for using a generator or electrical sources
  • Brushless 1.36 hp motor and 3-stage pump maximizes pump and tool productivity while minimizing heat build-up and downtime
  • Oil Capacity: 1.75 gallons; Flow rate-32 in3/min
  • The Lithium-Ion battery provides superior run time - even under extreme job site conditions, running approximately 50 cycles on a RC1006 and approximately 90 cycles on a RC504 cylinder on a single charge
  • Convenient 10 ft. pendant cord for hassle-free operation
  • Reduce noise level, 80 dba maximum
  • Zero emission hydraulic power pack

Technical Specifications

Maximum Operating Pressure10,000 psi (700 bar)
Cylinder CompatabilitySingle-acting
Reservoir Capacity1.75 gal (6600 cm3)
Usable Oil Capacity1.75 gal (6,6 litres)
Maximum Flow at Rated Pressure32 in3/min (0,52 l/min)
Output Flow Rate No Load310 in3/min (5,08 l/min)
Output Flow Rate Load32 in3/min (0,52 l/min)
Output Flow Rate 4000 psi80 in3/min
Number of Outlets1
Motor Size1.4 hp
Duty CycleIntermittent
Valve FunctionAdvance / Neutral / Retract
Valve OperationManual
Valve Type3-way, 3-position
Valve ModelVM33
Power SourceBattery
Pump ControlPendant
Charger Voltage230 VAC
Weight65.5 lbs (29,7 kg)
